Basic Boat Info
Dimensions
Engines / Speed
- Make: John Deere
- Model: 4045 Tier 3 Marine Diesel
- Fuel: Diesel
- Engine Power: 125hp
- Type: Inboard
- Propeller Type: 4 BladeBronze
- Engine Location: Center
- Year: 2016
- Engine Hours: 172
Tanks
Other
Contact
Office
308 Harbor Drive
Sausalito, CA, US, 94965
Tel:415-377-0866
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
SPECIFICATIONS, "COOT" STEEL 36 TRAWLER YACHT
HULL AND DECK Welded steel hull construction, 4mm .superstructure, 5mm decks, topsides and bottom, 6mm .garboard plank, 8mm keel sides 12mm keel and rudder .skeg. Sand blasted inside and out to SA 21/2' and double .epoxy coated with JotoMastic 87A.
.Bottom, two additional coats Joton SaveGuard.Spray .Expanding Foam Insulation,
.Stainless steel ball type seacocks.
.Steel fuel and water tanks.
.Water tanks coated with Jotun Penguard epoxy certified for .potable water containment.
.Aluminum frame boat windows with tempered glass. 10mm .fixed, 8mm sliding. Provisions for storm covers.
.Three opening ports, two in queen berth cabin, one in head.
.Fiberglass escape and ventilation hatch in forward cabin.
.Stainless stanchions and life lines.
.LPU finish.
Space for washer or washer/dryer combination.Air/conditioning with heat installed
Painted furniture with teak trim and louvered doors.
All finished hand rubbed and buffed.

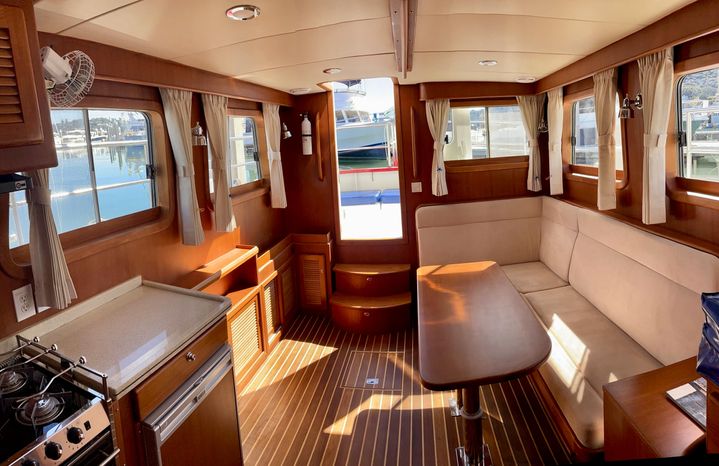

Large dinette to port and two chairs with storage to stbd.
Galley forward with sink with pressure water.
Stove with microwave or oven and 24 volt under counter refrigerator.
Countertop trash bin.
Safety grab rails overhead.
Tempered glass sliding windows w/ screen, tinted or clear.
Quality Upholstery.
Two large comfortable seats, each big enough for two.
Strong foot rails.

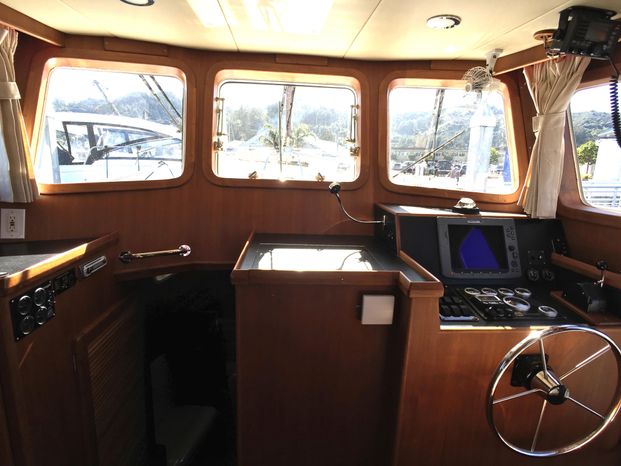

Overhead mounting for electronics.
All wiring and steering gear easy to get to.
Hydraulic steering.
Extra thick 10mm tempered forward windows, center window opens.
"Dutch" dogged sea doors port and starboard.
A good chart table in dash.

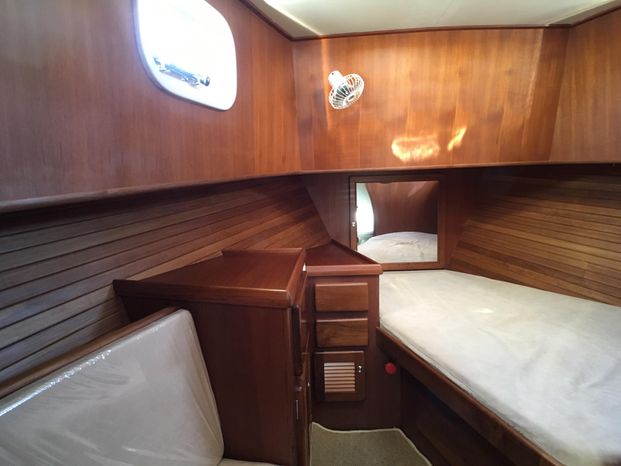

Large double berth to stbd.
Two opening ports.
Escape and ventilation hatch to front deck.
Hanging locker and storage space.
Anchor rope locker forward.
Built in lounge seat.
Full size toilet with fresh water flush.
Large holding tank with deck pump out.
Separate Shower with seat
Storage.
Opening port.
Louvered door.
Mirror installed.
.Full walk around side decks.
.Stainless life rails and bow pulpit.
.Well scuppered cockpit hatch to lazerette.
.Aft and spring line deck cleats.
.Anchor bollard Fwd.
.Light, radar and antenna mast aft of pilothouse with flag halyards.
.Stainless folding boarding ladder at stern.
.Sail assist rig for stabilizing and economy.

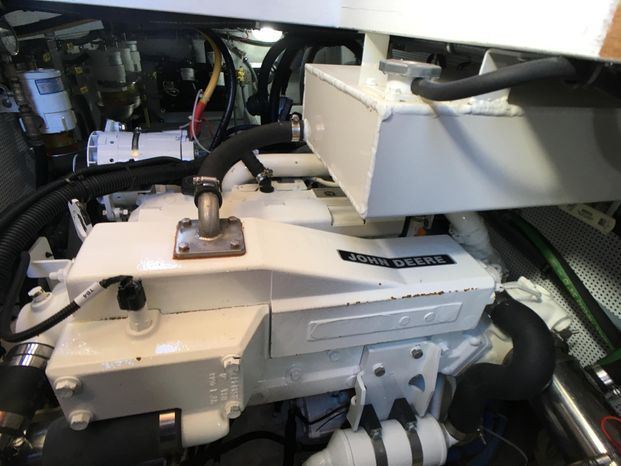

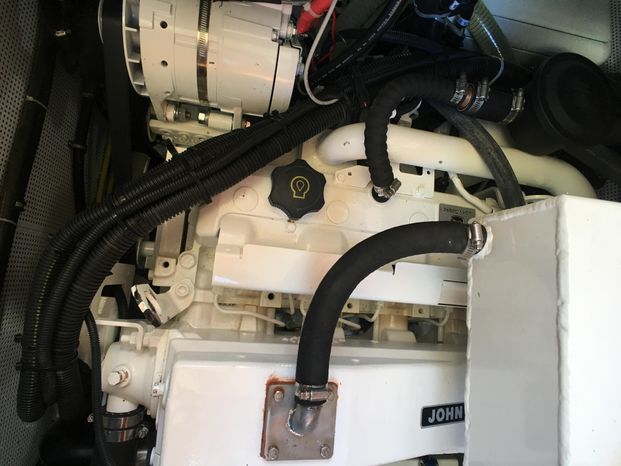

John Deere 4045 TFM 85 Tier 3/Stage III Marine diesel 125 HP, with ZF transmission.
PSS dripless shaft packing gland.

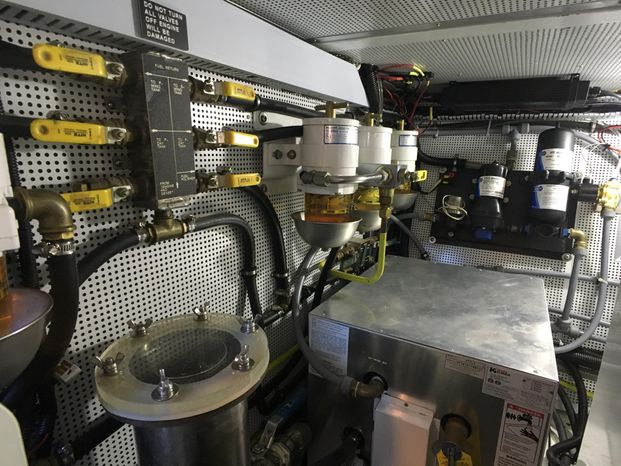

Racor filter system.
Engine raw water strainer.
Engine room heavily insulated for sound and temperature.
Engine room lights and blower.
Fuel shut off valves and sight gauges.
Engine has low oil and high water temperature alarm.
Engine oil and fuel filters with priming pump.
Fuel polishing system.Seahorse COOT
Thrust bearing with "U" joint Carden shaft and soft motor mounts for vibration control
ZF CRUSE COMMAND SHIFT CONTROL
SIDE-POWER BOW THRUSTER SYSTEM
BALMAR MAX CHARGE MC-624 Multi-Stage Voltage Regulator
BALMAR ALTERNATOR, High output alternator;
Muir electric windlass with 200' chain and anchor;
House and start battery banks with charger/inverter;
All LED lighting (except spotlight) ;
2 KW radar;
ComNav Autopilot; 1440
RAYMARINE E120 RADAR/GPS
RAYMARINE ASI 250 Receiver
ICOM VHF MARINE IC-M5O4 w/HAILER
SONY AM/FM DISC PLAYER
MARINE AIR HEAT/AIR CONDITIONERSeahorse COOT
Eight KW toroidal isolation transformer.
Custom back-lit circuit breaker panel.
12 volt 300AH AGM house and start batteries.
Shore power system, 120 or 220 volt input, with CB protection. Shore power volt meter.
12 volt inverter/charger.
VHF radio with AIS.
All receptacles GFI protected.Seahorse COOT
SAFETY All light LED except spot and instrument lights International navigation lights.
Exclusive LED bow mounted crab pot/debris light. Anchor light with emergency strobe..
Electric horn.
Lightening protection.
Hi bilge alarm wired to horn.
Hi exhaust and engine room temperature alarms.
Twin 3000 GPH electric bilge pumps plus manual pump.
All light LED except spot and instrument lights
International navigation lights.
Exclusive LED bow mounted crab pot/debris light.
Anchor light with emergency strobe..
Electric horn.
Lightening protection.
Hi bilge alarm wired to horn.
Hi exhaust and engine room temperature alarms.
Twin 3000 GPH electric bilge pumps plus manual pump.
Stainless life rails & folding ladder.
Stern deep swim boarding ladder that can be lowered from the water.
Large anchor, several types available, Muir 12 volt windlass..
200' galvanized chain anchor rode.
6 mooring lines.
Compass.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Call or Email Skip Johnson for more information at. 925-819-1460 or skip@oceanicyachts.com
